We make Switch Panels and Vessel Monitoring Modules

At Kaiman Marine, we manufacture high-quality breaker panels and vessel monitoring modules designed specifically for the marine environment. Our panels are crafted with high precision and engineered for reliability.

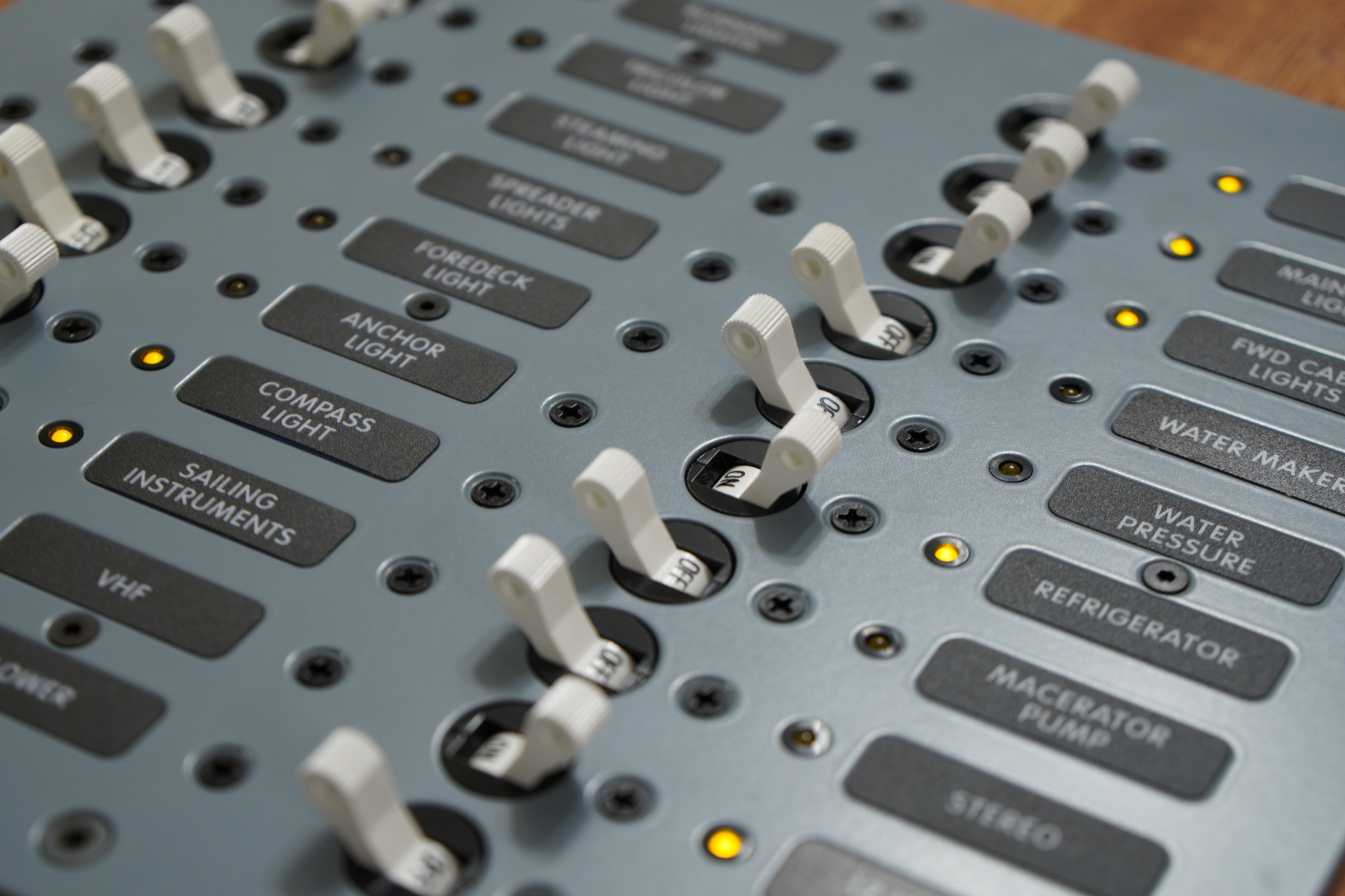

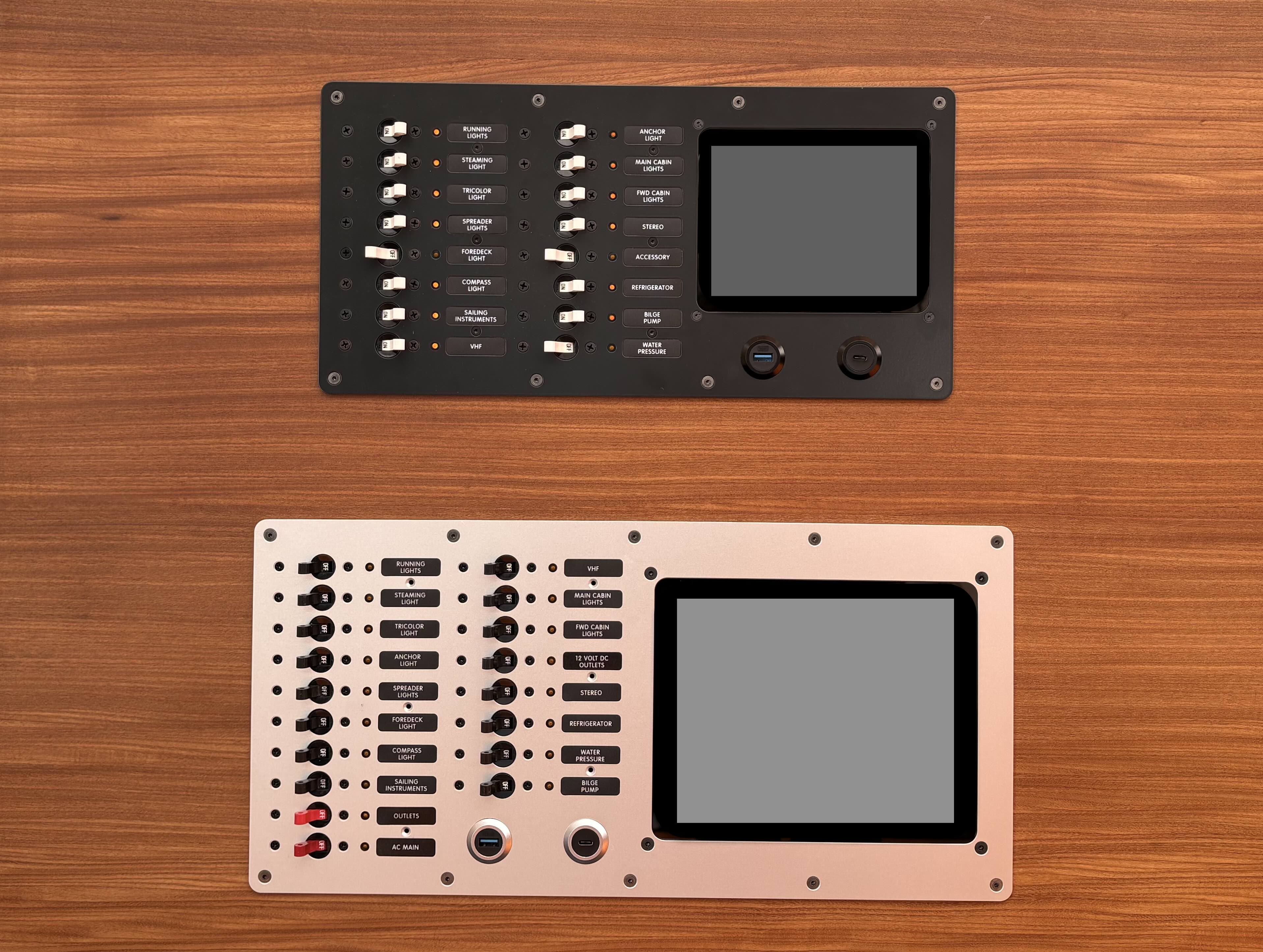

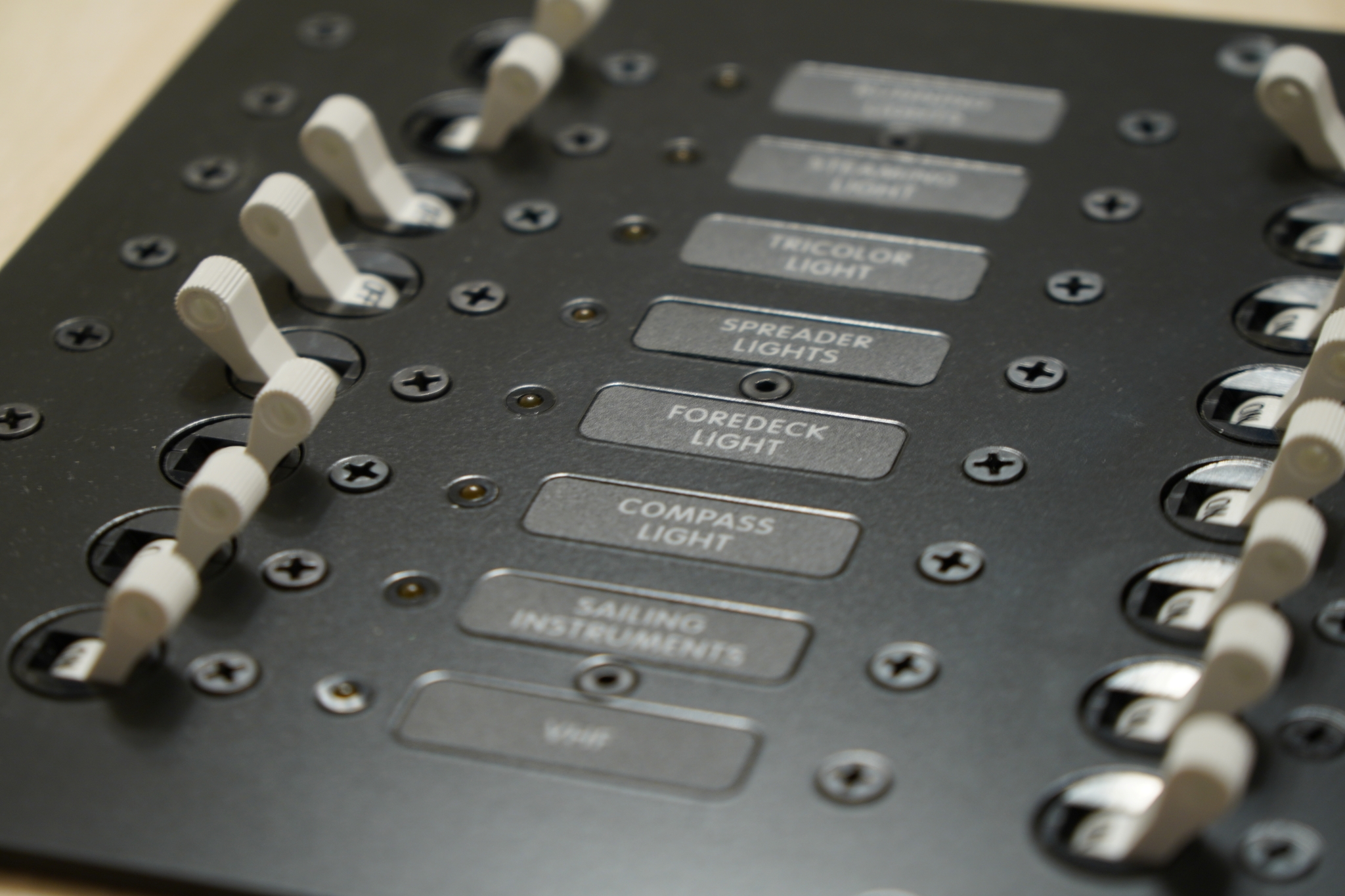

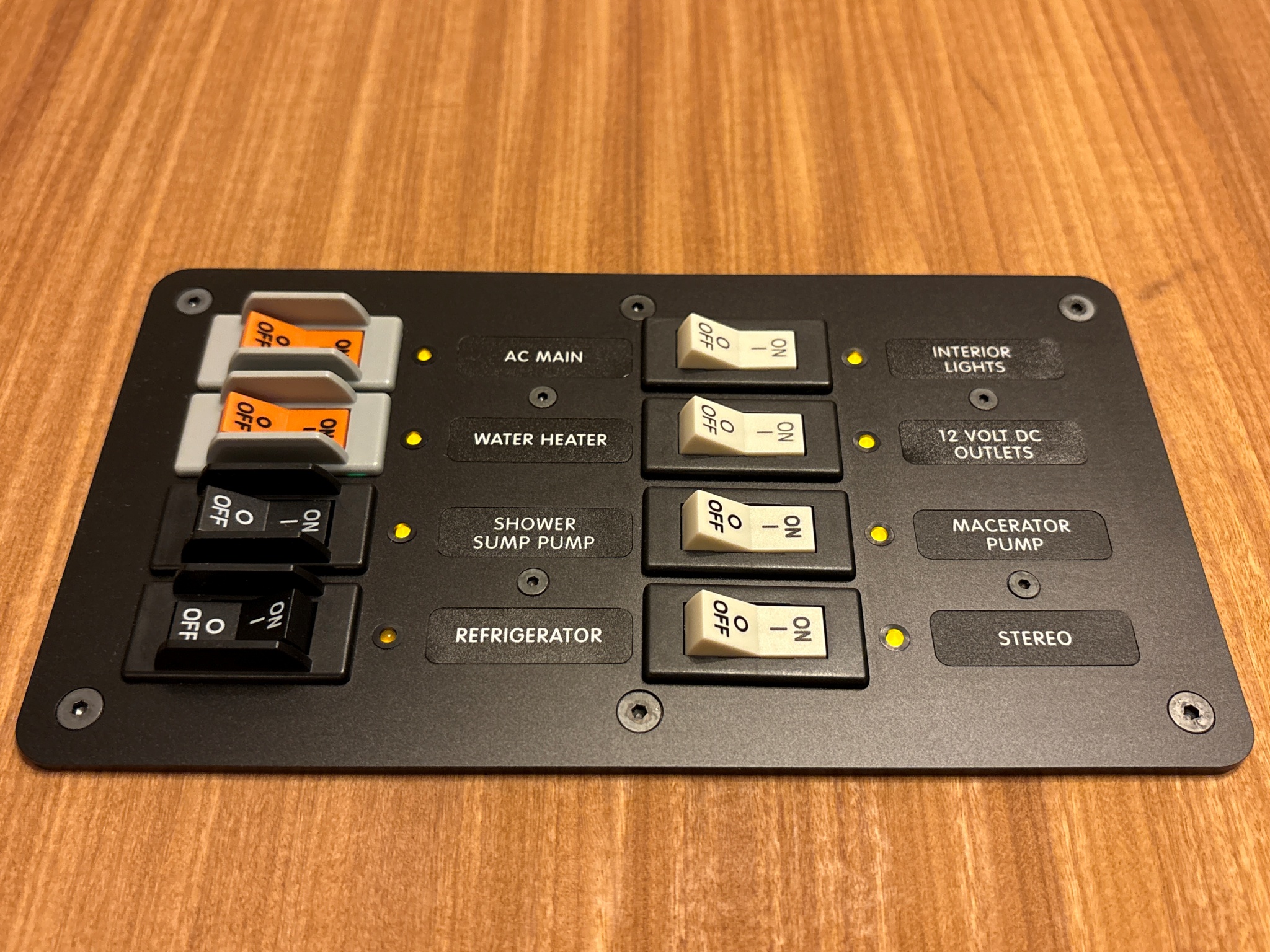

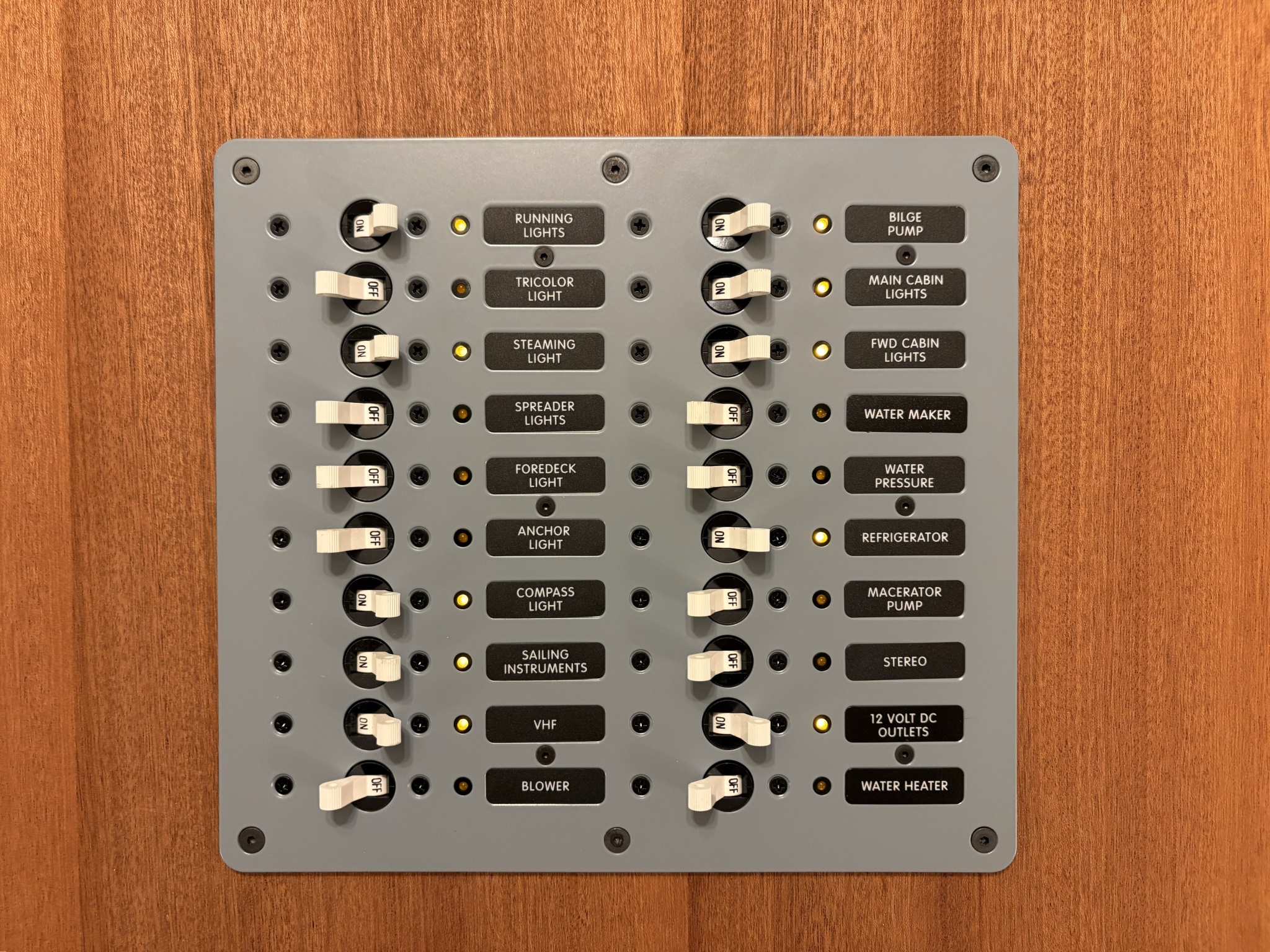

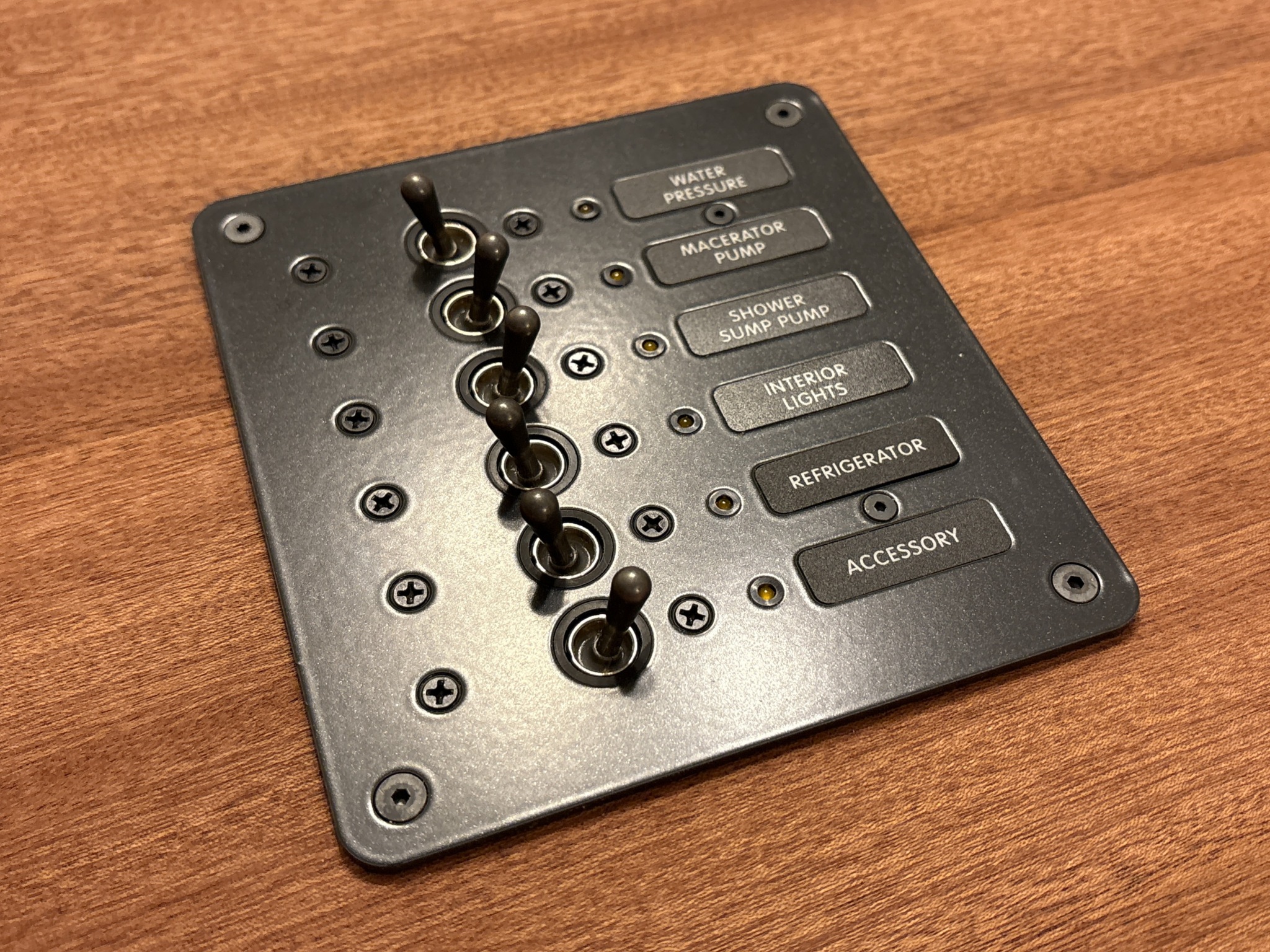

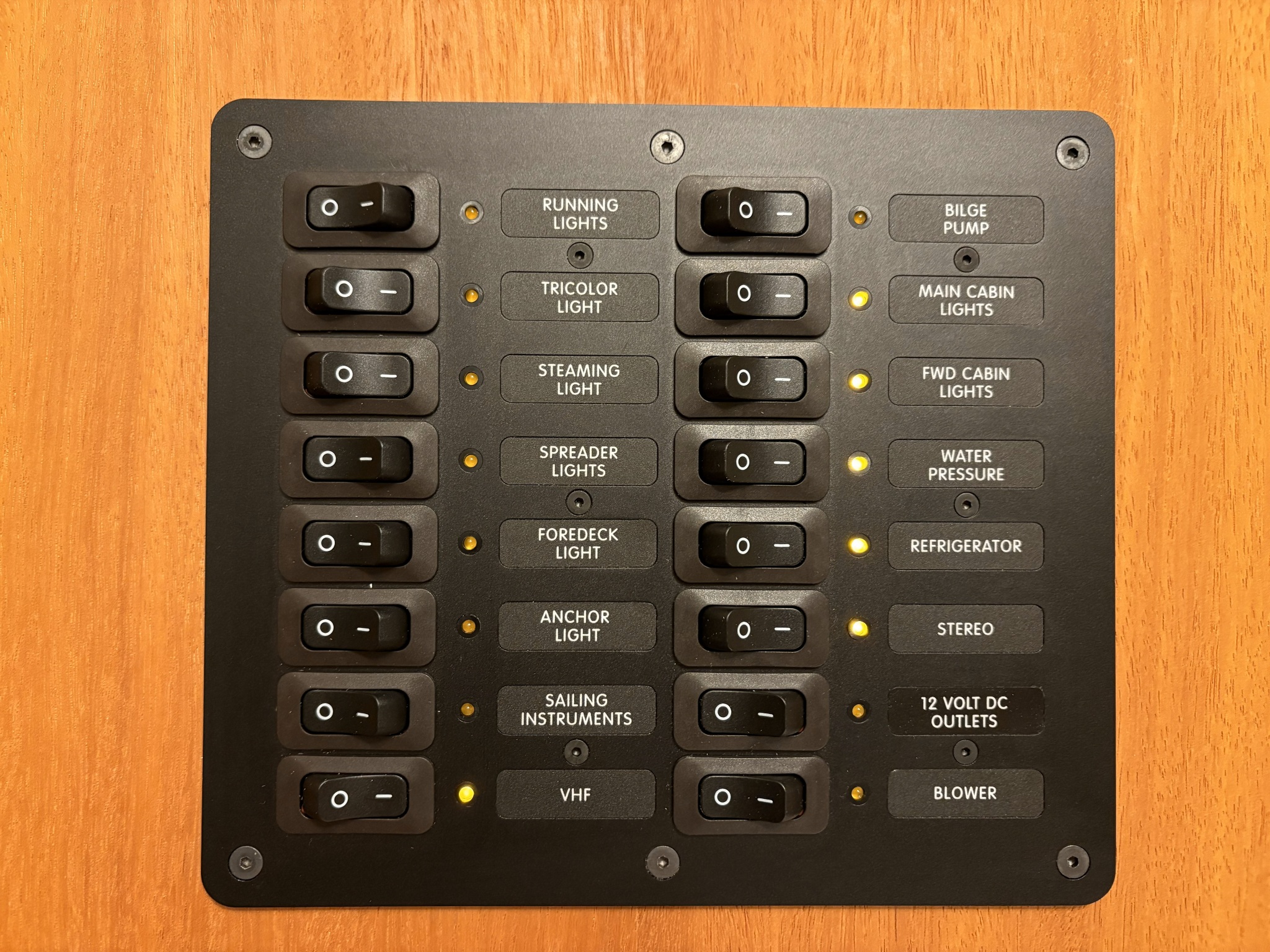

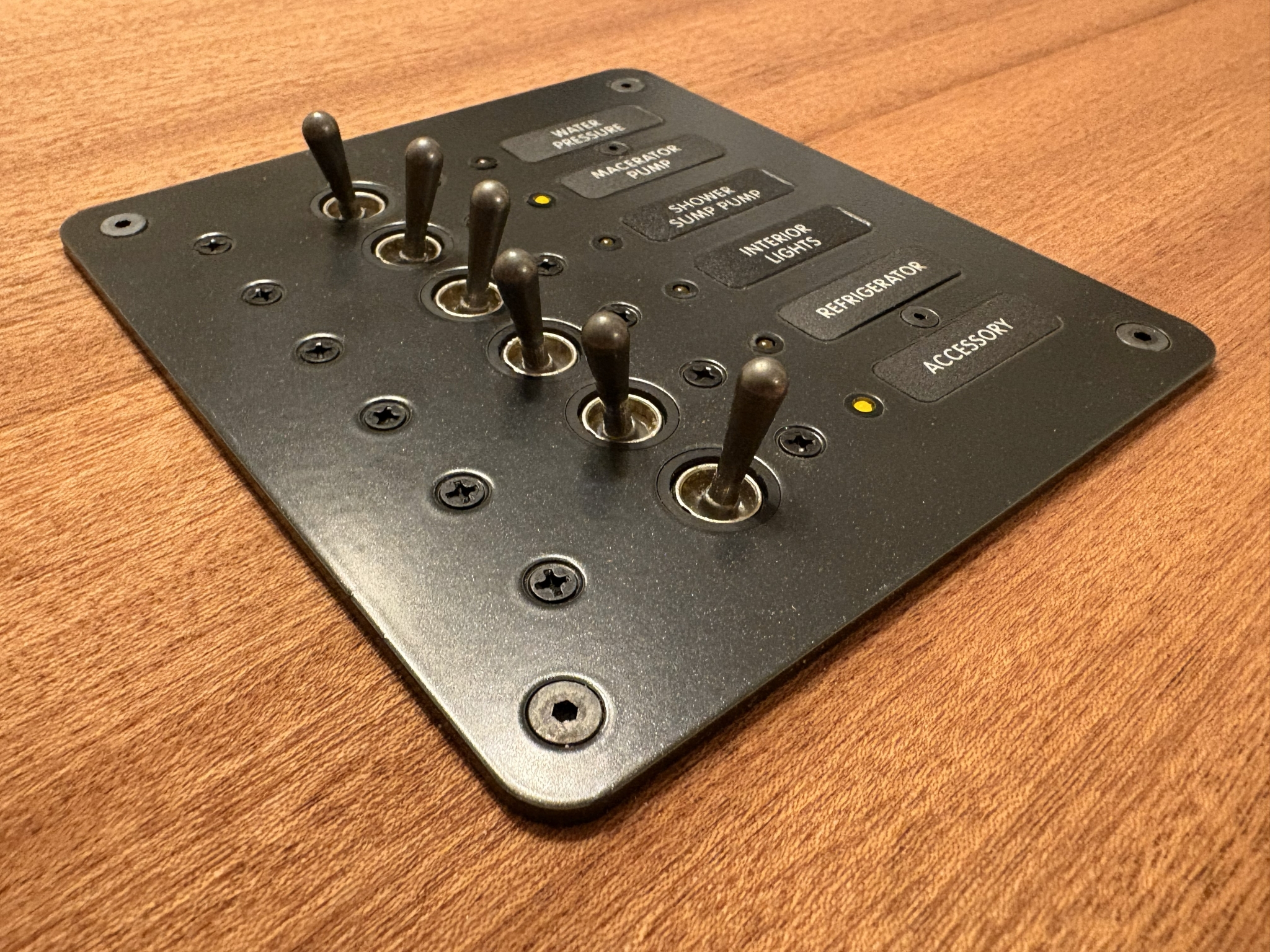

Circuit Breaker Panels

Our custom circuit breaker panels are made from high-grade, hardened and corrosion-resistant aluminum alloy.
Each panel is CNC-cut with 0.05 mm precision and anodized for durability.

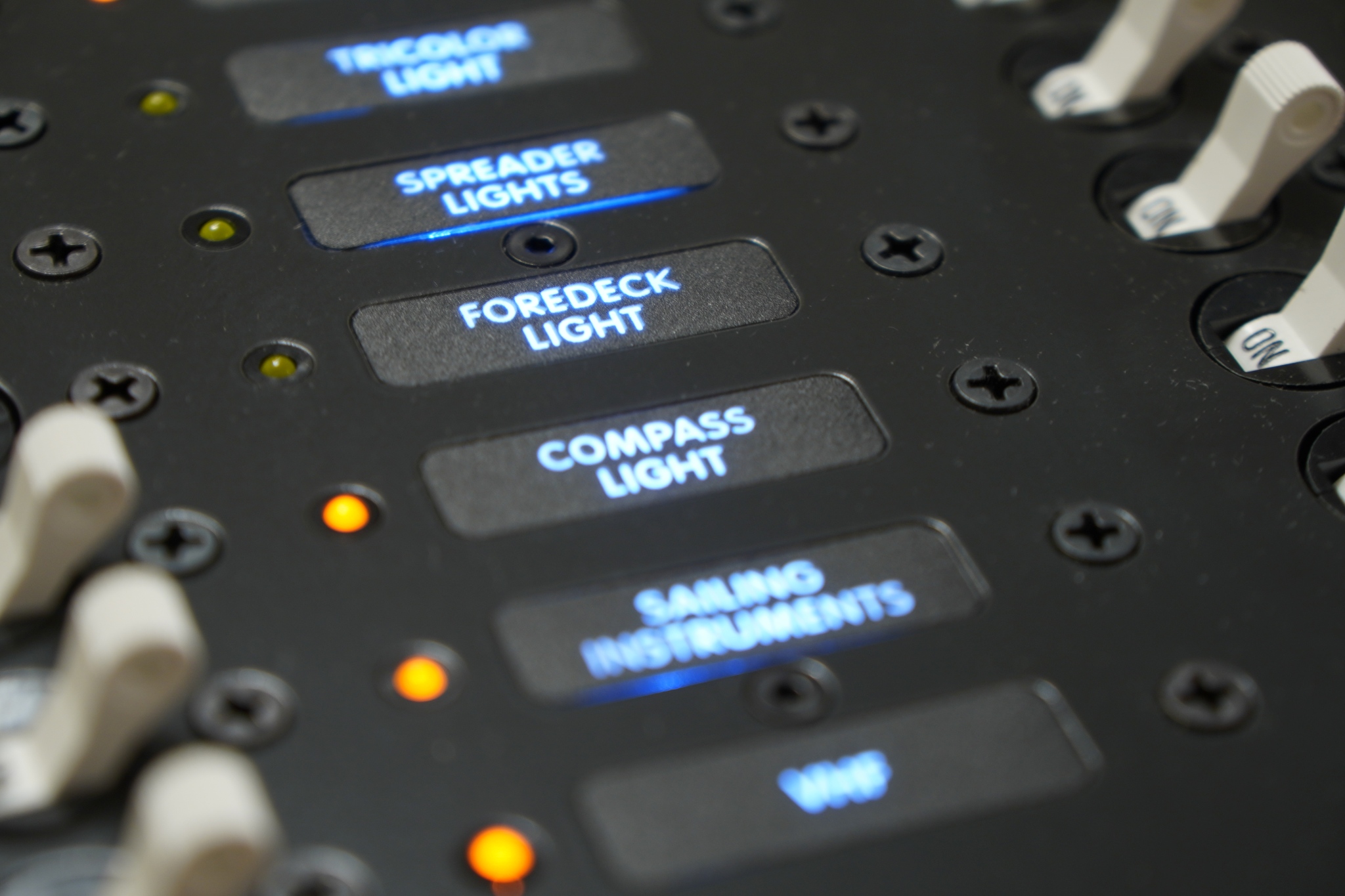

• Circuit Control LEDs: Can blink with programmable blink patterns, customizable for each LED.
• Backlight Brightness: Both control LEDs and labels have independently adjustable brightness.
• Standard Labels: Our panels use labels commonly available in most marine stores.
• Dual Voltage Support: Panels support both 12V and 24V systems, ensuring consistent brightness regardless of voltage.

Surface Finish Options

We offer three surface finishes for our panels:

• Anodized Glossy
• Black Anodized Glossy
• Anodized & Powder-Painted in almost any RAL color

Circuit Breakers

We offer three types of circuit breakers to meet your needs:

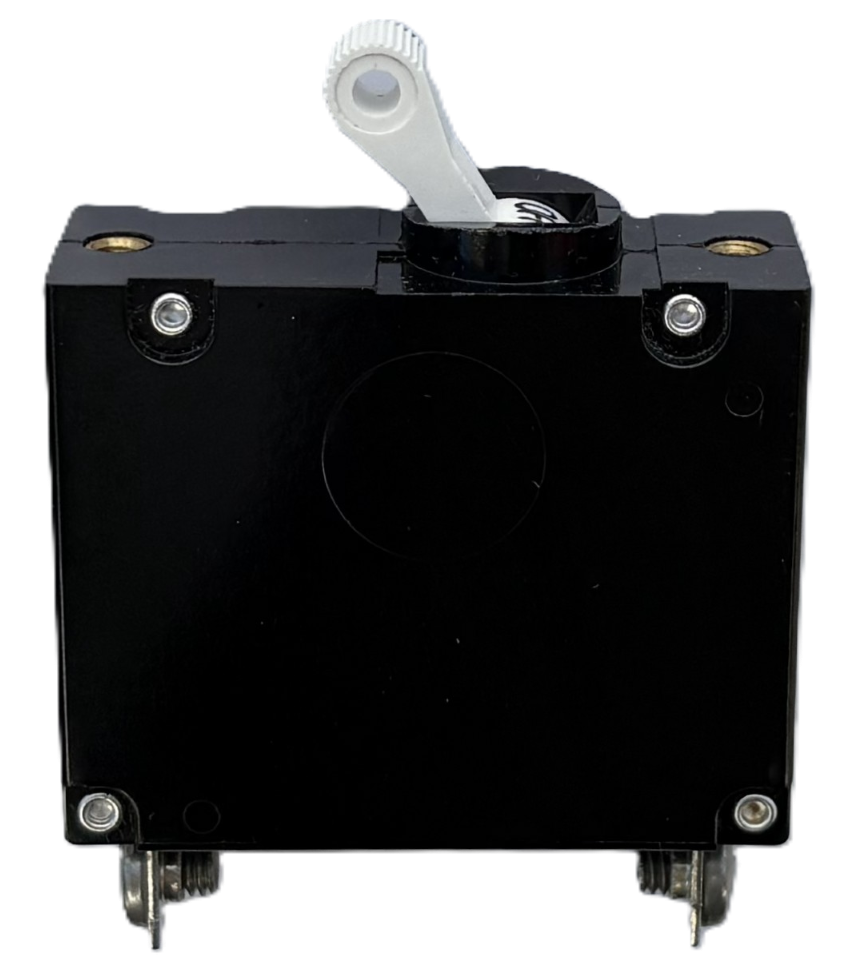

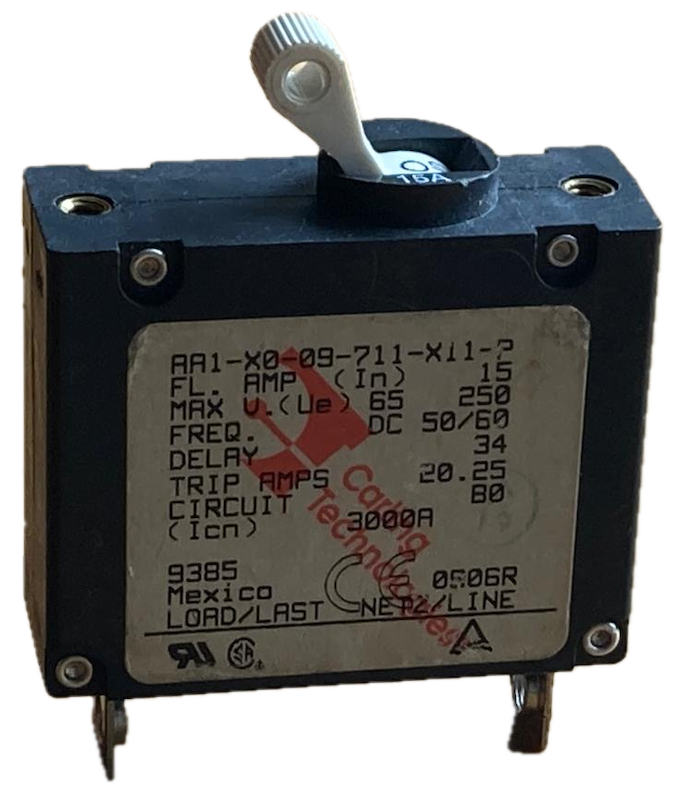

• 2" x 3/4" Magneto-Hydraulic with Paddle (up to 120A)
  - the most standard type, widely available in marine stores worldwide

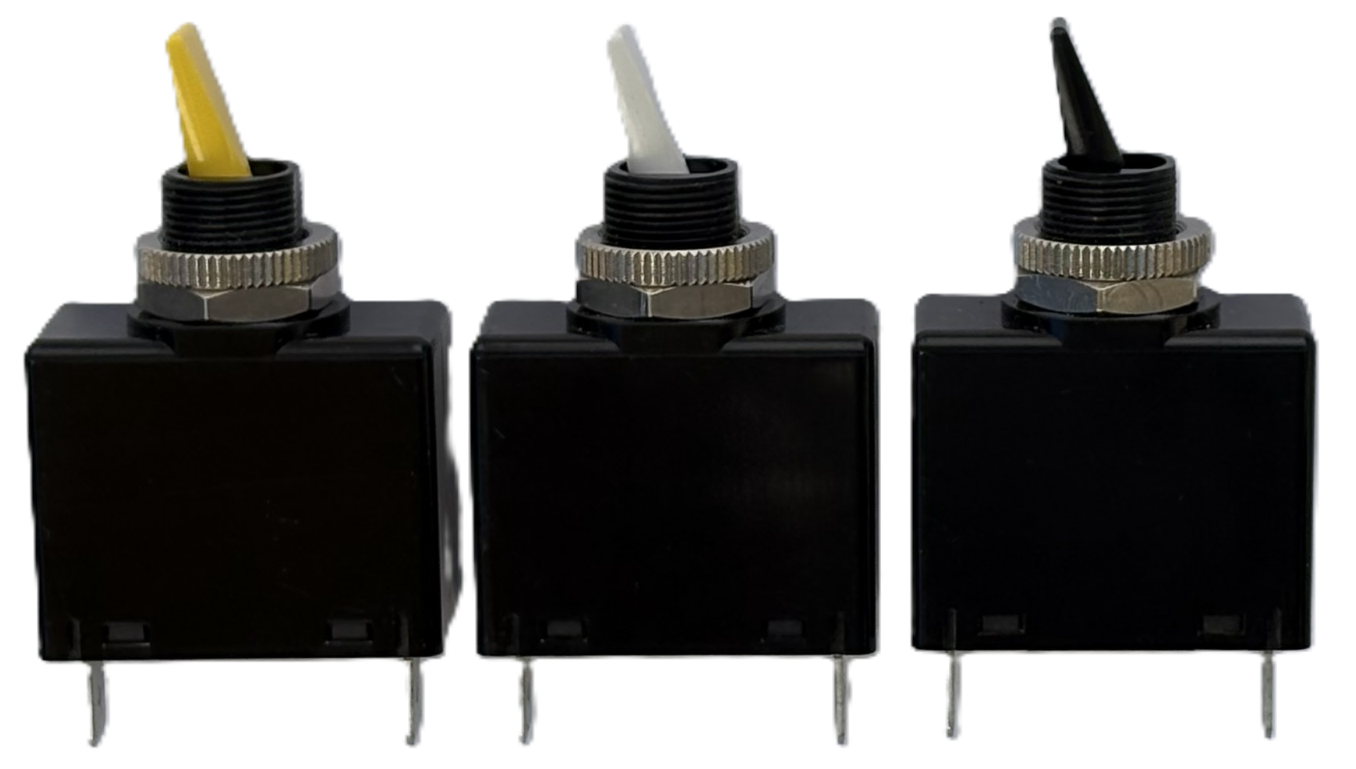

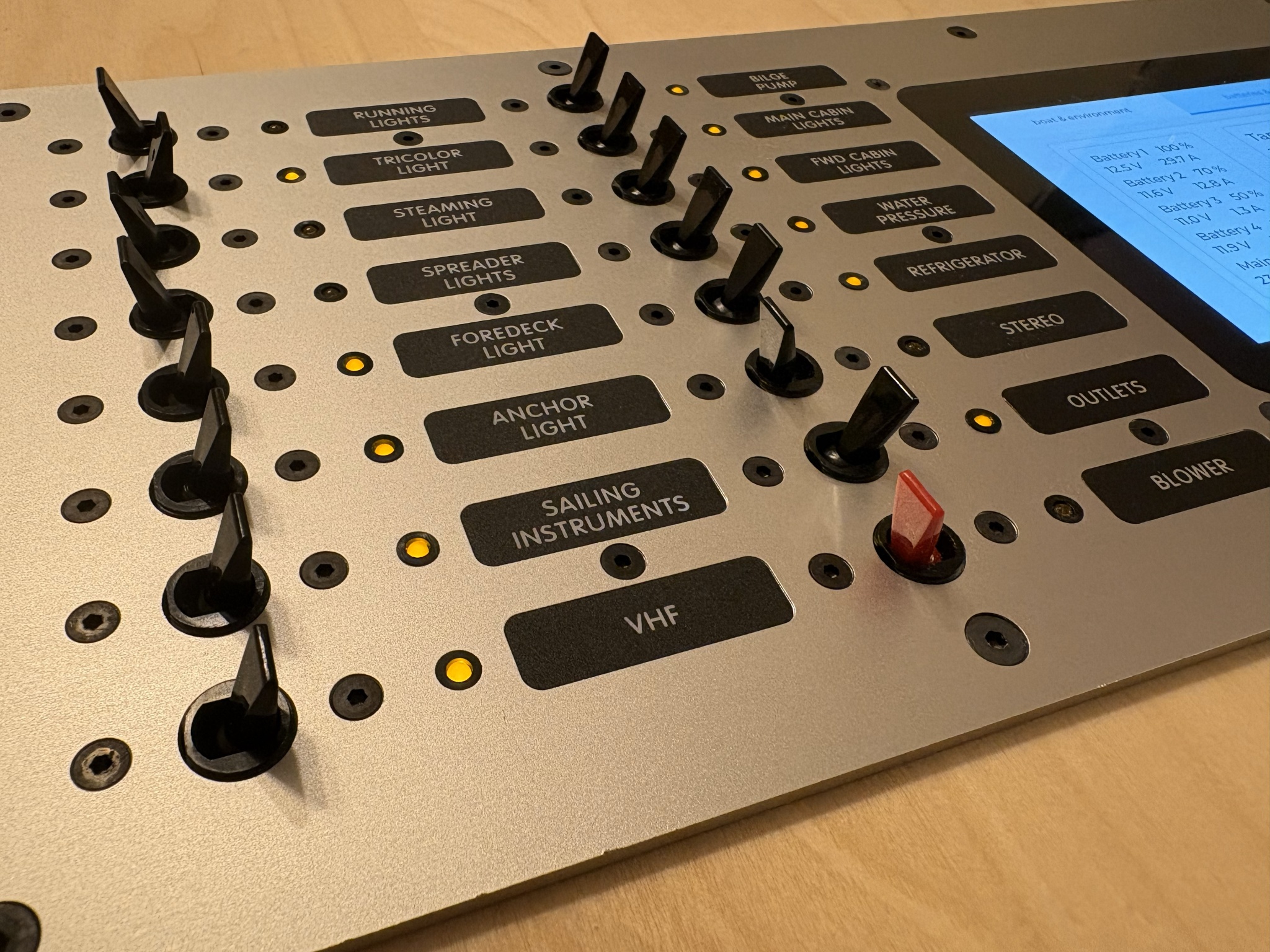

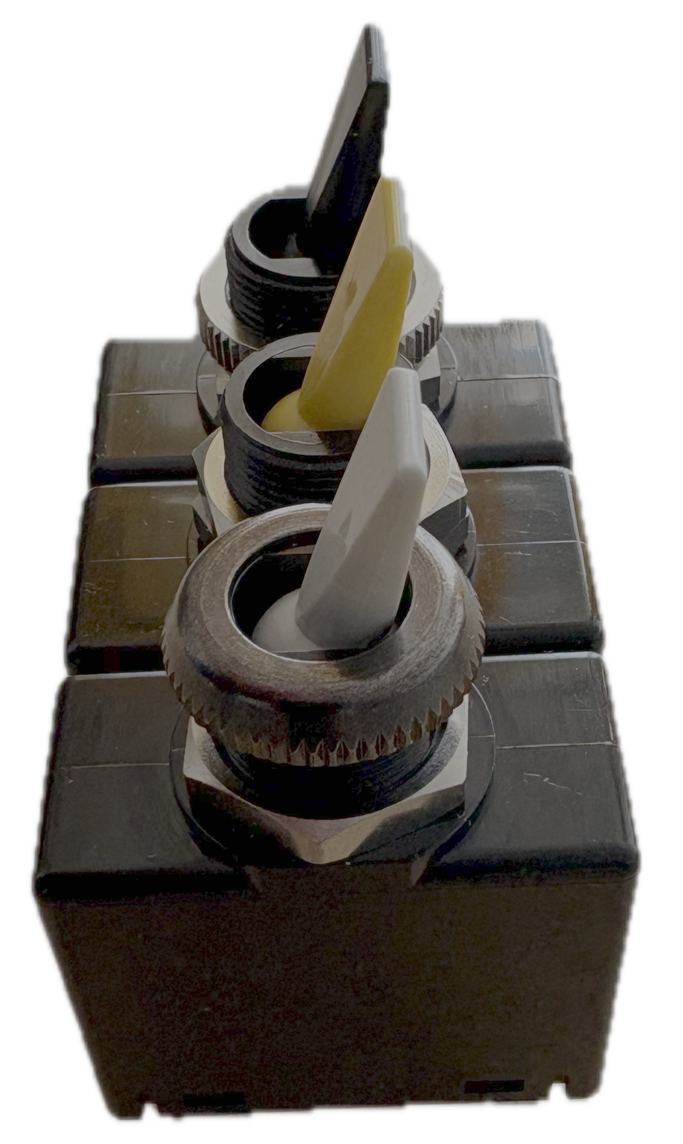

• 1-3/8" x 3/4" Magneto-Hydraulic with Paddle (up to 30A)

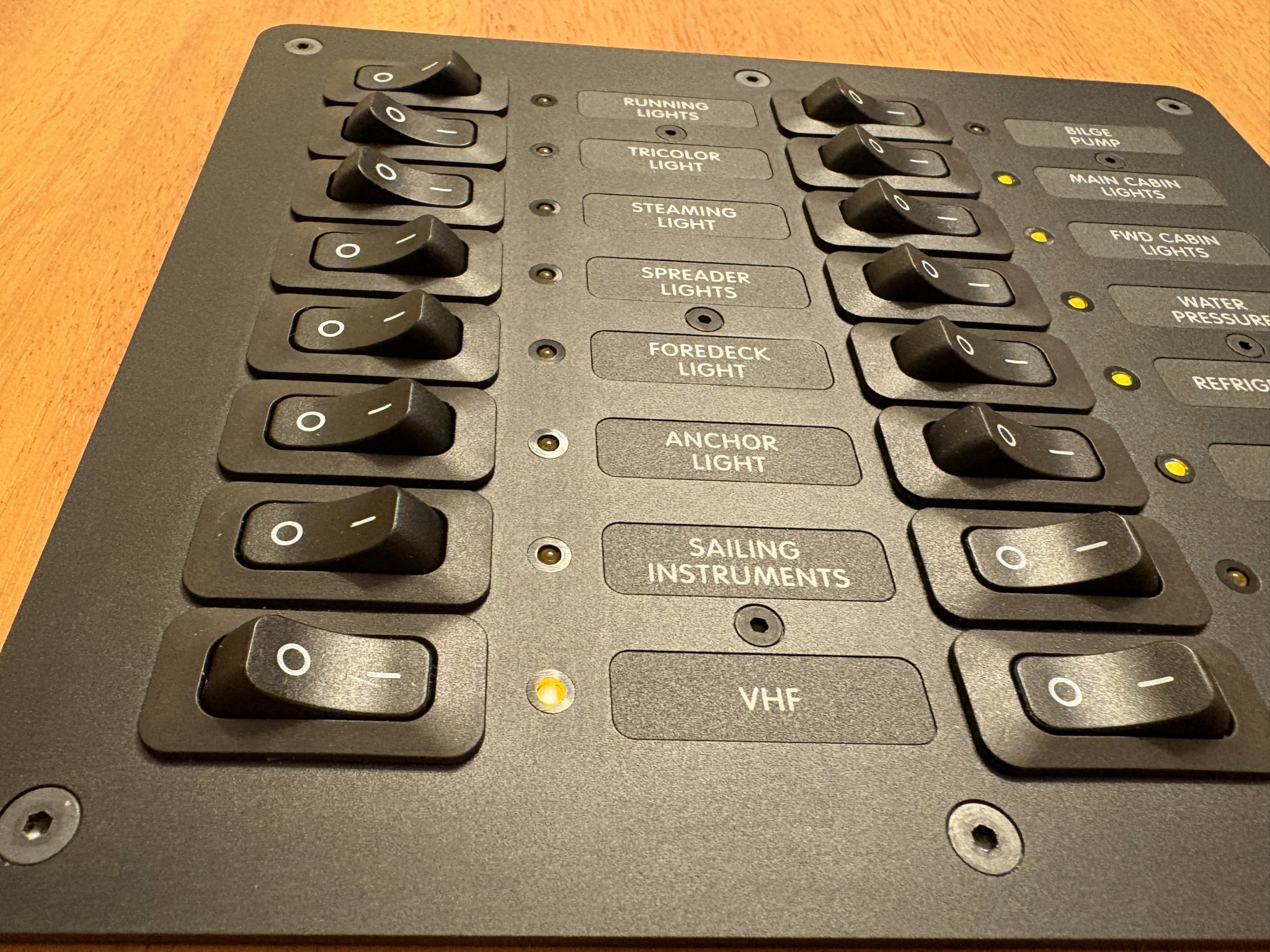

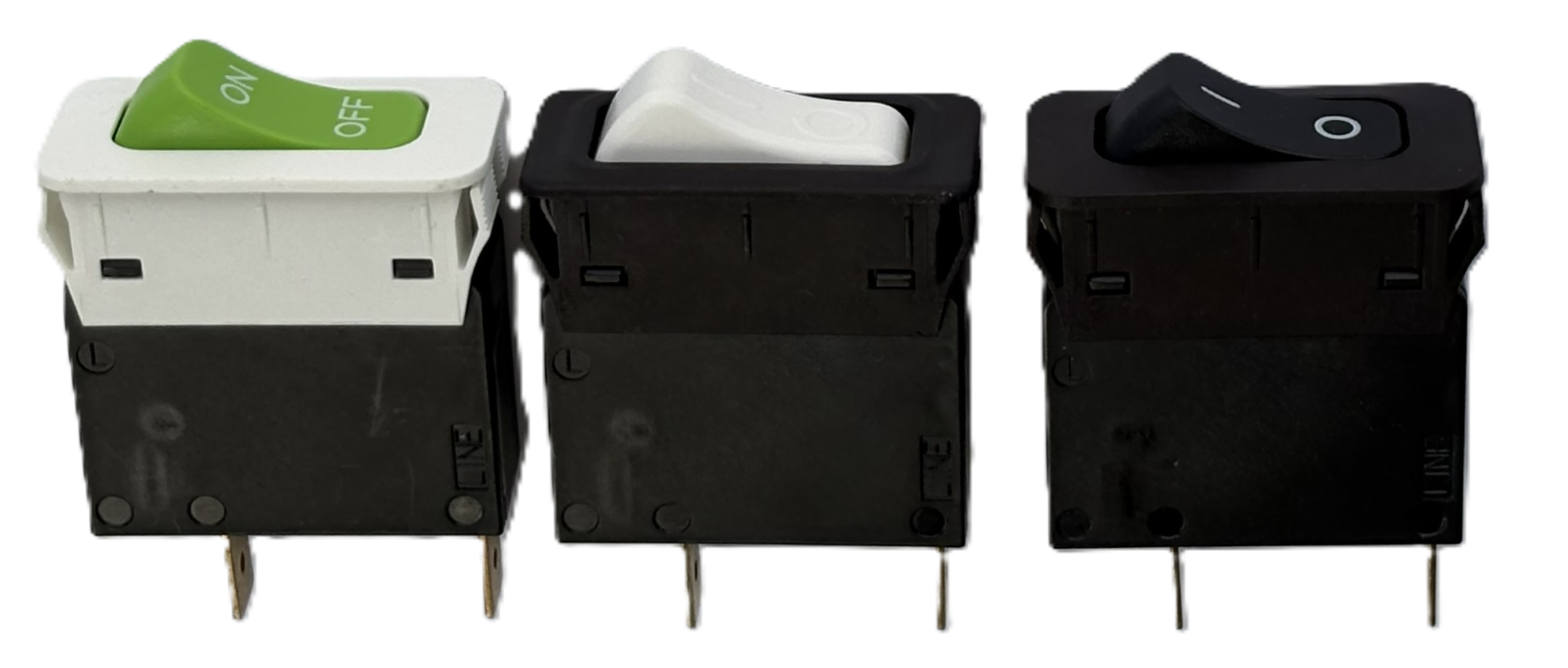

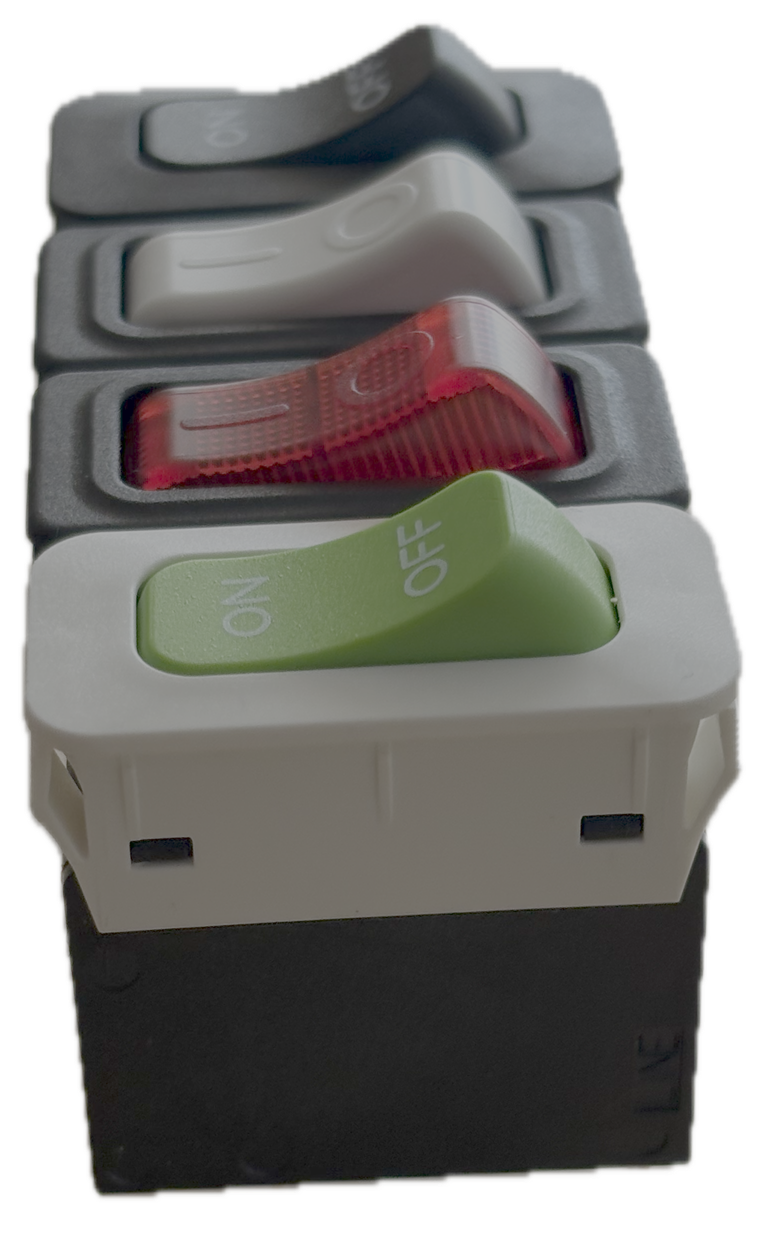

• 1-3/8" x 3/4" Thermal with Rocker (up to 20A)

Vessel Monitoring Modules (comming very soon)

Our Vessel Monitoring Modules come with advanced features to monitor various aspects of your vessel's systems.
Key features include:

• Battery Monitoring: Monitor up to four batteries (voltage, current, charge level).
• Tank Level Monitoring: Supports up to eight standard resistive tank level sensors.
• AC Line Monitoring: Monitors voltage and frequency of one AC line (galvanically isolated).
• Additional Sensors:
  • Tilt sensor
  • Atmospheric pressure sensor
• NMEA 2000 Integration: Can integrate with your boat's NMEA2K network (galvanically isolated).
• External Data Integration: Can present and store data from other devices, such as depth, boat speed, course, wind speed, and direction.
• Data Storage: Stores up to 14 days of data acquired in several-second intervals.
• Sound Alarm
• Firmware Updates: Easy updates via USB flash drive.

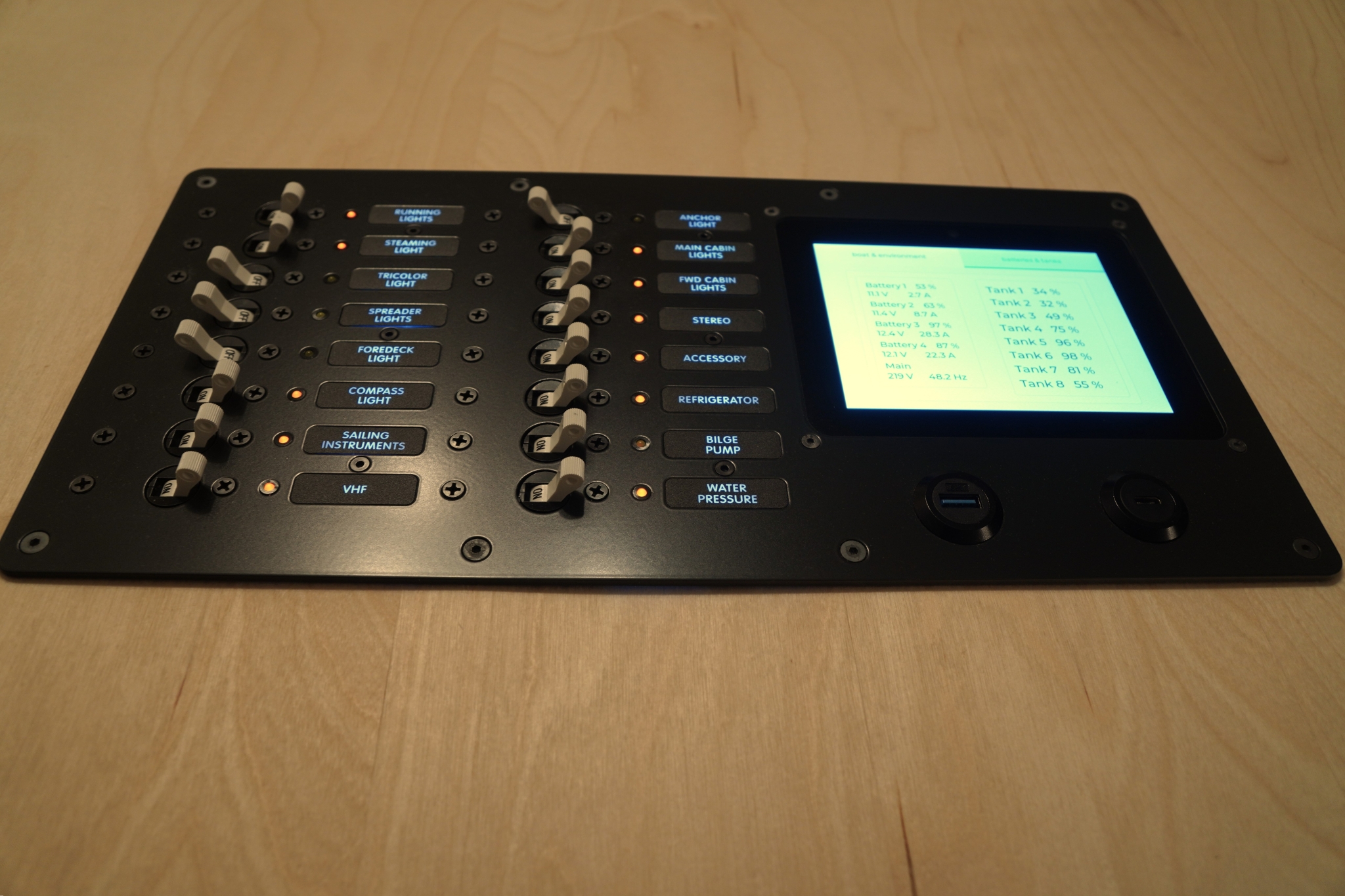

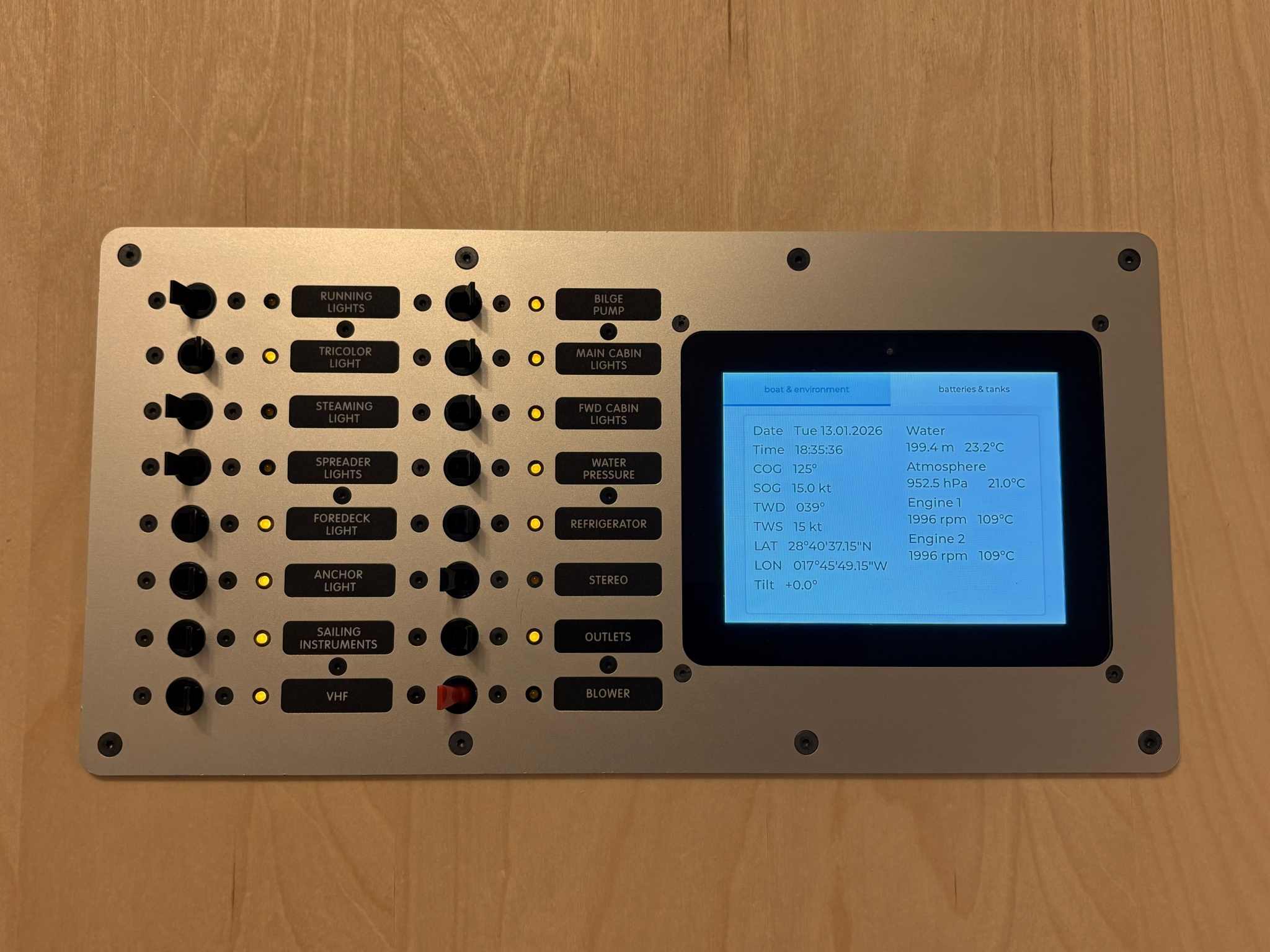

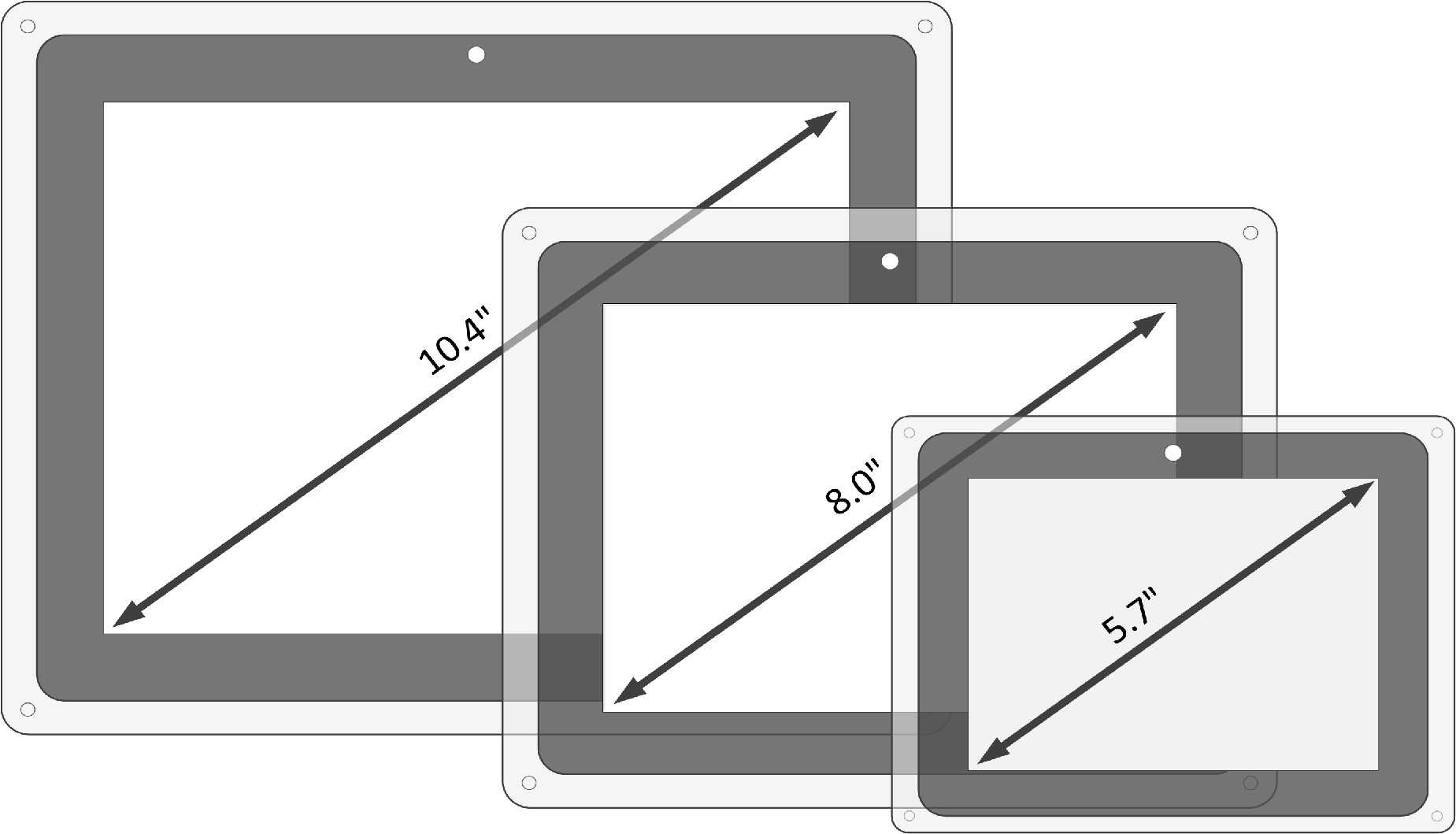

Vessel Control Module Sizes

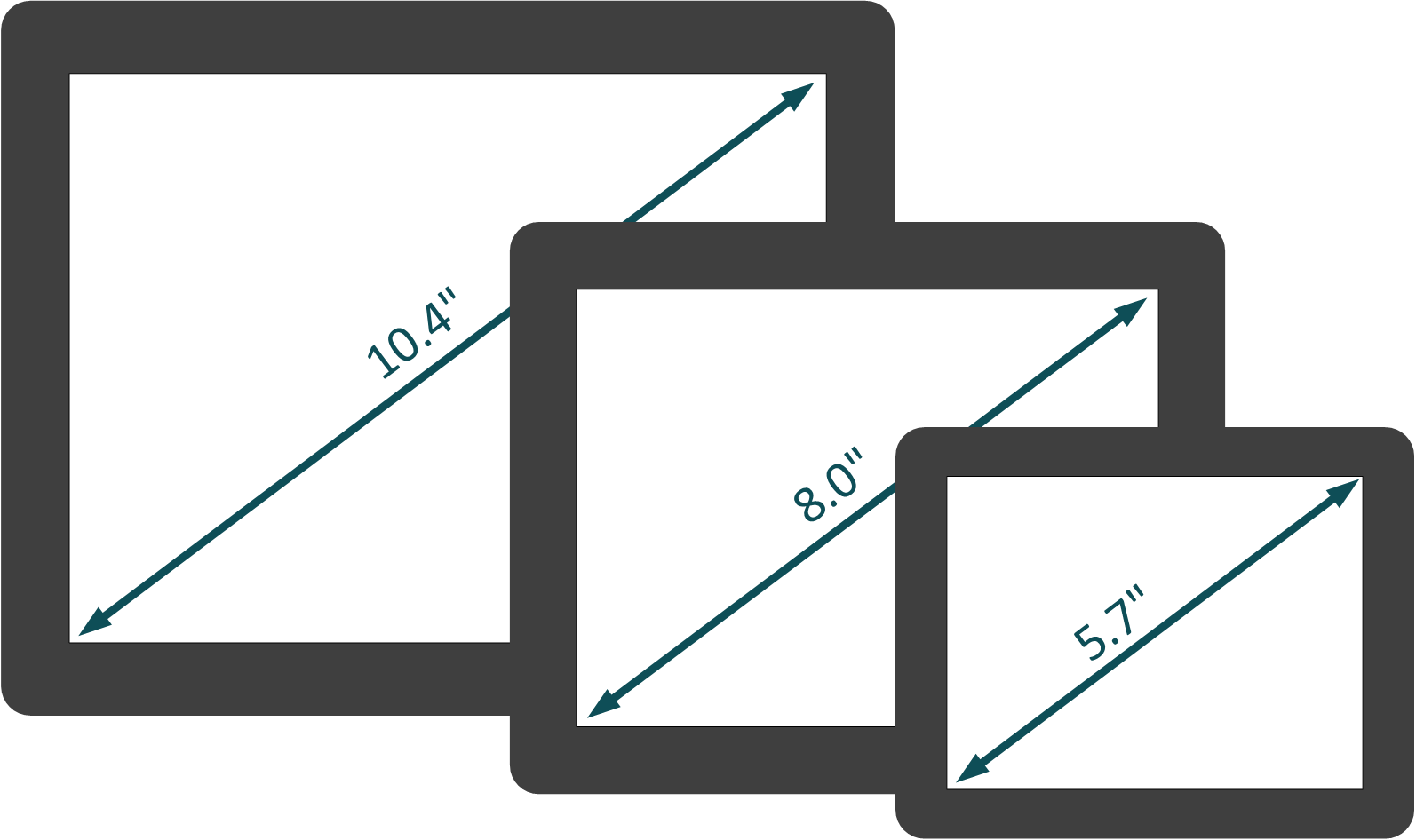

We offer our Vessel Control Modules in three display sizes:

Fill out the form below to specify your product of interest,
or just send your inquiry to info@kaiman-marine.com.

Fields marked with an asterisk (*) are required.

Product Selection

 Panel with Display  Display  Panel

Display Configuration

Display Size (inches) * - Select One - 5.7 8.0 10.4

Number of Batteries to Monitor * (4 maximum)

Number of Tanks to Monitor * (8 maximum)

Features

Monitor one AC line (voltage and frequency)

Tilt sensor

Atmospheric pressure sensor

Store measured values for up to 14 days

NMEA2k integration

Interface Language Required if other than English, French, Spanish or German.

Panel Configuration

Surface Finish * - Select One - Anodized natural-gloss Anodized black-gloss Paint RAL color Panels are made from 3 mm thick highly corrosion-resistant and anodized aluminum.

RAL Color Code

Number of Circuit Breaker Columns * (3 max)

Number of Circuit Breakers per Column * 4 - 12, value must be even.

Breaker Type * Magneto-hydraulic 2" x 3/4", 120A max Magneto-hydraulic 1-3/8" x 3/4", 30A max Thermal 1-3/8" x 3/4", 20A max 2" x 3/4" size is the most common.

Include USB charger socket
